Coordinate System

🏆Practice coordinate system

What is the coordinate system?

A coordinate system, or more precisely, a Cartesian coordinate system, is a method to precisely present the position of points, whether on a plane (two-dimensional) or in three-dimensional space. In this chapter, we will focus on a coordinate system on a plane, that is, a system made up of two axes (straight lines) that are perpendicular to each other (forming a 90-degree angle between them).

To facilitate the understanding of the material, let's look at the following drawing, which gives an example of a two-dimensional coordinate system:

coordinate system image

As mentioned, as can be seen in the drawing, it is customary to identify the horizontal axis with X X and the vertical axis with Y Y .

The intersection point between the two axes is called the origin and is usually identified with the letter O O .

Along the X X horizontal axis, the numbers increase to the right of the origin and decrease to the left of the origin.

Along the Y Y vertical axis, the numbers increase upwards in relation to the origin and decrease downwards in relation to the origin.

Start practice

Test yourself on coordinate system!

einstein

Which point is marked on the graph?

–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555666777–3–3–3–2–2–2–1–1–1111222333000

Practice more now

Characterization of a Point in a Cartesian Coordinate System

Identifying a point in the coordinate system is done using two values, X X and Y Y .

In the next step, we will use the drawing below and demonstrate how a point can be characterized on a two-dimensional plane.

Identifying a point using two values, X and Y


Quadrants in a Coordinate System

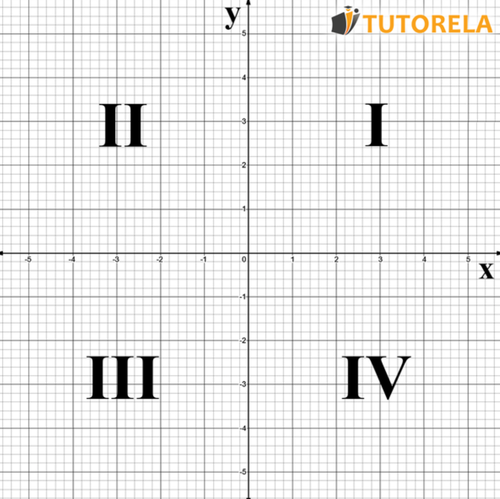

The two axes divide the plane into four quadrants. As you can see in the illustration, the first quadrant is the upper right part, marked with an I I , and the rest follow in a counterclockwise sequence.

Each of the quadrants is characterized by different values of X X and Y Y , which are detailed below:

  • Quadrant I - positive X X values and positive Y Y values
  • Quadrant II - negative X X values and positive Y Y values
  • Quadrant III - negative X X values and negative Y Y values
  • Quadrant IV - positive X X values and negative Y Y values

Quadrants in a Coordinate System

1 -  Quadrants in a coordinate system


Join Over 30,000 Students Excelling in Math!
Endless Practice, Expert Guidance - Elevate Your Math Skills Today
Test your knowledge

Characterization of a Point in a Cartesian Coordinate System

Identifying a point in the coordinate system is done using two values, X X and Y Y .

In the next step, we'll use the drawing below and demonstrate how a point can be characterized in a two-dimensional plane.

done using two values, X and Y

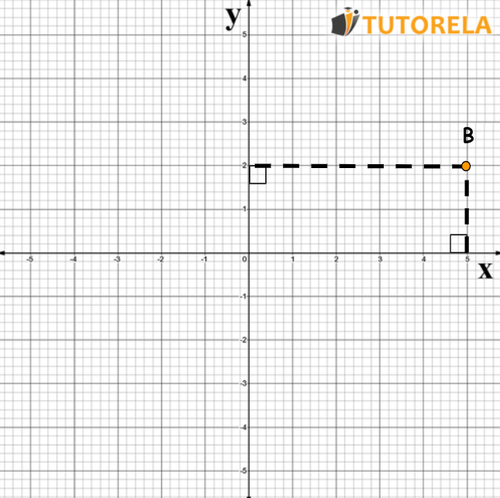

In the drawing, we see the point B B . We are interested in characterizing it. To do this, first, we'll draw two vertical lines from the point B B to each of the two axes, as shown in the drawing.

We see that on the horizontal X X axis, the point "meets" the value 5 5 , while on the vertical Y Y axis, the point "meets" the value 2 2 .

It's common to write the values as points in parentheses, where the value of X X appears as the first value on the left, while the value of Y Y appears as the second value, on the right.

Therefore, point B B would be written as follows:

B(5,2) B (5,2)


Characterizing Points Located on One of the Axes

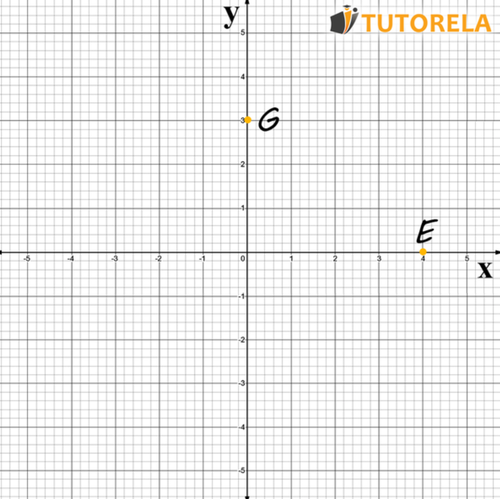

When the point is on one of the coordinates (for example, points E E and G G in the illustration)

Points in a Cartesian Coordinate System

2 points in a cartesian coordinate system

Remember the following rule:

  • When the point is on the X X axis, the Y Y value is 0 0 , which means it has coordinates: E(4,0) E (4,0)
  • When the point is on the Y Y axis, the value of X X is 0 0 , which means it has coordinates: G(0,3) G (0, 3)

Do you know what the answer is?

Examples and Practice on Coordinate Systems

Exercise 1

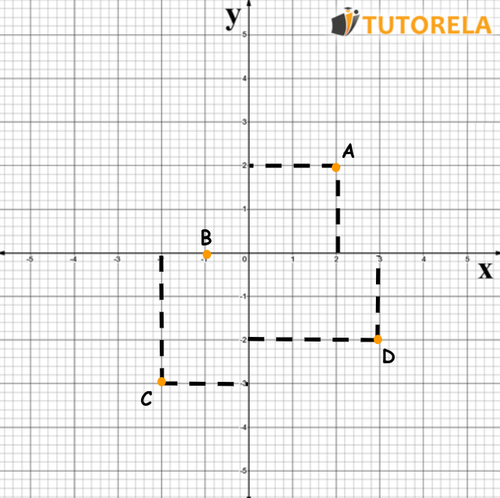

Look at the following coordinate system and these are the points A,B,C,D A, B, C, D .

coordinate system and these are the points A, B, C, D

Solution:

We will apply what we've learned and drop verticals from the points A,C,D A, C, D to each of the axes

It should be noted that point B B is on the X X axis, and therefore, its Y Y value is 0 0

Answer:

A(2,2) A (2,2)

B(1,0) B (-1,0)

C(2,3) C (-2,3)

D(3,2) D (3,-2)

Exercise 2

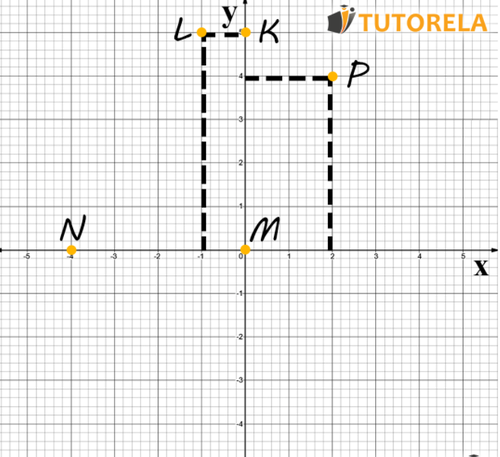

Plot the following points on the coordinate system:

k(0,5) k (0,5)

L(1,5) L (-1,5)

M(0,0) M (0,0)

N(4,0) N (-4,0)

P(2,4) P (2,4)

coordinate system image


Solution:

For points L L and P P , you need to find the X X values and the Y Y values where the intersection of these values is indeed the desired point.

The points K K and N N are located on the axes themselves, and therefore the following rule applies:

When the point is on the X X axis, the Y Y value is 0 0

When the point is on the Y Y axis, the X X value is 0 0

The point M is located at the intersection of the two axes.

Answer:

See the following drawing:

the following drawing


If you're interested in more information about "graphs," you can find detailed information in the following articles:

Data Collection and Organization - Statistical Research

Reading Information from Graphs

Graph

Discrete Graph

Continuous Graph

In the Tutorela blog, you will find a variety of articles with interesting explanations about mathematics


Examples and Exercises with Solutions for the Coordinate System

Exercise #1

Which point is marked on the graph?

–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555666777–3–3–3–2–2–2–1–1–1111222333000

Video Solution

Answer

(6,1) (6,1)

Exercise #2

Which point is marked on the map?

–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555666777–3–3–3–2–2–2–1–1–1111222333000

Video Solution

Answer

(5,3) (5,3)

Exercise #3

Choose the appropriate drawing where the dots appear:

(5,1),(7,0),(4,1) (-5,1),\lparen7,0),(-4,-1)

Video Solution

Answer

–7–7–7–6–6–6–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555666777888999101010111111121212131313–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555000

Exercise #4

Choose the appropriate drawing where the dots appear:

(1,3),(2,5),(3,3) (1,3),\lparen2,5),(3,3)

Video Solution

Answer

–8–8–8–7–7–7–6–6–6–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555666777888999101010111111–4–4–4–3–3–3–2–2–2–1–1–1111222333444555000

Exercise #5

Choose the appropriate drawing where the dots appear:

(1,0),(2,2),(5,4) (1,0),\lparen-2,-2),(-5,4)

Video Solution

Answer

–8–8–8–7–7–7–6–6–6–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555666777888999101010111111–5–5–5–4–4–4–3–3–3–2–2–2–1–1–1111222333444555000
