The center of the circumference belongs to subtopics that make up the topic of the circumference and the circle. We use the concept of the center of the circumference to define the circumference itself, as well as to calculate the radius and diameter of each given circumference.

The center of the circumference, as its name indicates, is a point located in the center of the circumference. It is usually customary to mark this point with the letter O. Indeed, this point is at the same distance from each of the points that make up the circumference. Β

Start practice

Test yourself on parts of the circle!

einstein

The number Pi \( (\pi) \) represents the relationship between which parts of the circle?

Practice more now

If you are interested in this article, you might also be interested in the following articles:

  • The circumference
  • Circle
  • Radius
  • Diameter
  • Pi
  • The perimeter of the circumference
  • Circular area
  • Arcs in a circle
  • Chords in a circle
  • Central angle in a circle
  • Perpendicular to the chord from the center of the circle
  • Inscribed angle in a circle

In the Tutorela blog, you will find a variety of articles about mathematics

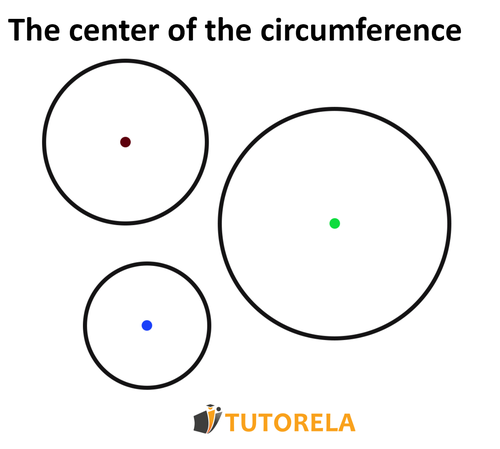

Below are some examples of different circumferences:

Each of them has a circumference center:


Exercises on the center of the circle:

Exercise 1

Assignment

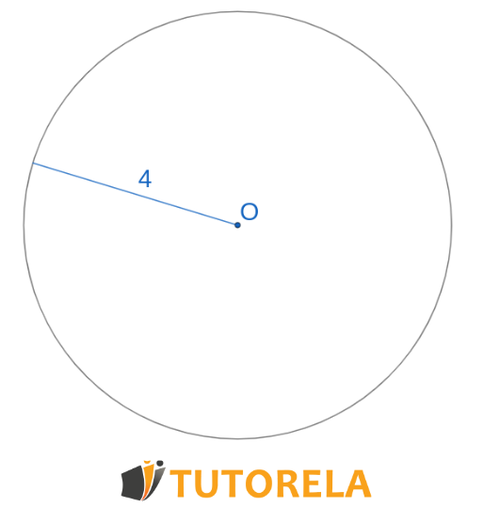

Given the circle in the figure, O O is the center,

What is the circumference?

Exercise 1- Assignment Given the circle in the figure O is the center

Solution

The radius is a straight line that connects the center of the circle and its circumference according to the figure is 4Β cm 4\text{ cm}

Circumference formula

2Ο€r 2\pi r

We replace accordingly based on the data

2Ο€β‹…4=8Ο€ 2\pi\cdot4=8\pi

Answer

8Ο€ 8\pi


Join Over 30,000 Students Excelling in Math!
Endless Practice, Expert Guidance - Elevate Your Math Skills Today
Test your knowledge

Exercise 2

Assignment

Given the circle with center O O

Is it possible to calculate its area?

Exercise 2 - Assignment Given the circle with center O

Solution

The center of the circle is O O

That is, the given line is the diameter.

Diameter = Radius multiplied by 2

2r=10 2r=10

r=5 r=5

We use the formula to calculate the area

A=Ο€r2= A=\pi r^2=

Ο€52=25Ο€ \pi5^2=25\pi

Answer

Yes, its area is 25Ο€ 25\pi


Exercise 3

Assignment

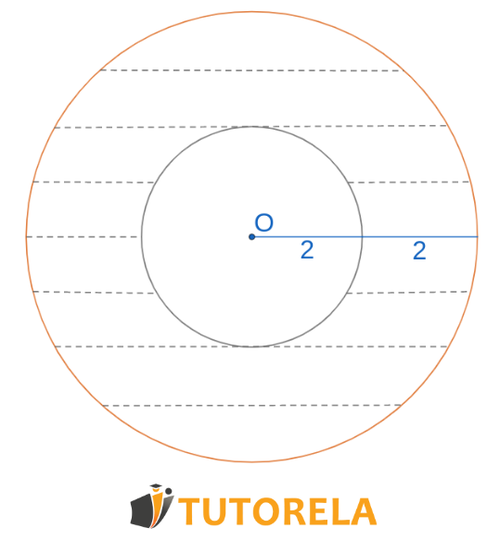

Given two circles whose center is located at the same point OO

Given the measurements of the figure

What is the area of the orange shape?

3  - Given two circles whose center is located at the same point O

Solution

Dotted area A A

Area of the large circle A1 A_1

Area of the small circle A2 A_2

A=A1βˆ’A2 A=A_1-A_2

A1=Ο€r12 A_1=\pi r_1^2

r1=2+2=4 r_1=2+2=4

A1=Ο€42=16Ο€ A_1=\pi4^2=16\pi

A2=Ο€r2 A_2=\pi r^2

r2=2 r_2=2

A2=Ο€22=4Ο€ A_2=\pi2^2=4\pi

A=A1βˆ’A2=16Ο€βˆ’4Ο€=12Ο€ A=A_1-A_2=16\pi-4\pi=12\pi

Answer

12Ο€ 12\pi


Do you know what the answer is?

Exercise 4

Assignment

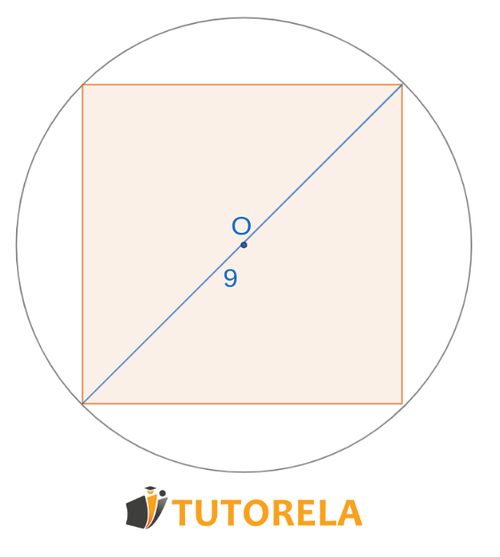

Given the circle center O O

Inside the circle, there is a square

What is the area of the combined white parts?

We replace

Ο€=3.14 \pi=3.14

Given the circle center  O  Inside the circle, there is a square

Solution

A1=Ο€r2 A_1=\pi r^2

Diameter= Radius multiplied by 2

Diameter =9 =9

Therefore, the radius is equal 4.5 4.5

A1=Ο€β‹…(4.5)2=20.25Ο€ A_1=\pi\cdot(4.5)^2=20.25\pi

(diagonalβ‹…diagonal)2=A2 \frac{(diagonal\cdot diagonal)}{2}=A_2

The formula for the area of a rhombus (the square is also a rhombus). In the square, the diagonals are equal and therefore all the diagonals are 9cm⁑ 9\operatorname{cm}

A2=9β‹…92=812=40.5 A_2=\frac{9\cdot9}{2}=\frac{81}{2}=40.5

A=20.25Ο€βˆ’40.5= A=20.25\pi-40.5=

=20.25β‹…3.14βˆ’40.5= =20.25\cdot3.14-40.5=

23.085cm⁑2 23.085\operatorname{cm}²

Answer

23.085cm⁑2 23.085\operatorname{cm}²


Exercise 5

Assignment

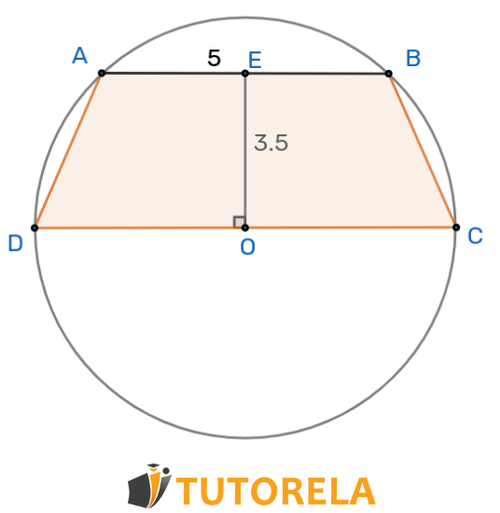

The trapezoid ABCD ABCD is inside the circle, whose center O O

The area of the circle is 16Ο€cm⁑2 16\pi\operatorname{cm}Β²

What is the area of the trapezoid?

5 - The trapezoid  ABCD is inside the circle whose center  O

Solution

Ao=Ο€r2=16Ο€ A_o=\pi r^2=16\pi

We cancel out the 2 pi and take the square root

r=16=4 r=\sqrt{16}=4

DC=DO+OC= DC=DO+OC=

R+R=2R= R+R=2R=

2β‹…4=8 2\cdot4=8

ABCD=(AB+CD)EO2= ABCD=\frac{(AB+CD)EO}{2}=

(5+8)3.52= \frac{(5+8)3.5}{2}=

13β‹…3.52=22.75 \frac{13\cdot3.5}{2}=22.75

Answer

22.75cm⁑2 22.75\operatorname{cm}²


Check your understanding

Review Questions

What is the center of a circle?

The center of a circle is the midpoint that is at the same distance from the circumference to that point, it is exactly in the middle of the circumference.

What is the center of a circle


What is the diameter of a circle?

It is the line that touches the circumference from end to end but passes through the center, as shown in the following image.

What is the diameter of a circle


Do you think you will be able to solve it?

What are some elements of the circumference?

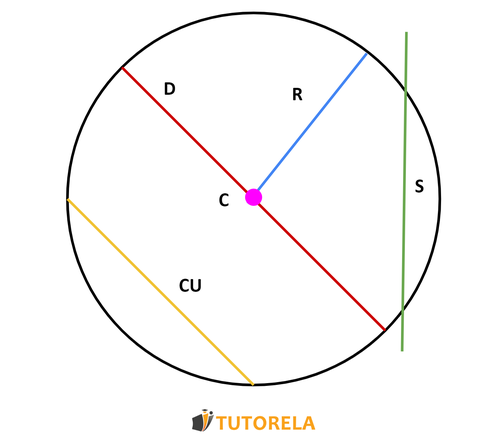

The circumference has some lines, which are presented in the image and let's define each one of them:

C (Center): It is the point that is at the center of the circumference

D (Diameter): It is the line that passes through the midpoint of the circumference, that is, it passes through the center and touches the circumference from end to end.

R (Radius): It is half of the diameter, and this line only touches the center at one point of the circumference.

CU (Chord): It is the line that touches the circumference from end to end but does not necessarily pass through the center.

S (Secant): Line that crosses the circumference, as shown in the image:

3 - The circumference has some lines


What happens if the radius is equal to zero?

If the radius in this case is zero, then there is no circumference, since as we mentioned the radius is the line that goes from the center of the circumference to any point on it, and because in this case the radius equals zero, we are not drawing any line and therefore no circle.
