The sides or edges of a triangle

๐Ÿ†Practice parts of a triangle

The sides of a triangle

Every triangle has three sides. That also works the other way around - if we see a shape with tree sides, it's a triangle.

types of triangles based on the sides:

The sides allow us to classify the different types of triangles according to their size:

  • Equilateral: All sides are equal, leading to equal angles.
  • Isosceles: Two sides are equal, with base angles also equal.
  • Scalene: All sides are different lengths, with all angles unique.
Perimeter of a Triangle

Like every polygon, the sides of a triangle form its perimeter. To find the perimeter of a triangle, simply add the lengths of all three sides.

A1 - Sides of a triangle
Relation between the sides and the angles in a triangle

In a triangle, thereโ€™s a direct relationship between the length of a side and the size of the angle across from it:
The Longer Side will always be in the opposite side of the larger Angle, and the shorter side will always be in the opposite side of the smaller Angle.

Can every three lines form a triangle?

In any triangle, the sum of the two shorter sides must always be greater than the length of the third side. This rule, known as the Triangle Inequality Theorem, ensures that the sides can actually form a closed triangle. For example, if the two shorter sides are not greater than the third, the sides would lie flat rather than forming a triangle. This principle is crucial in determining whether a set of side lengths can create a valid triangle.

Start practice

Test yourself on parts of a triangle!

Is the straight line in the figure the height of the triangle?

Practice more now

Perimeter of the triangle

Recall that the perimeter of a plane figure is its edge, so in a triangle the perimeter is the sum of its three sides (edges).


A condition satisfied by the measures of the sides (or edges) of a triangle.

In any triangle the sum of the length of any two of its sides must be greater than the length of the third side.


Join Over 30,000 Students Excelling in Math!
Endless Practice, Expert Guidance - Elevate Your Math Skills Today
Test your knowledge

Examples of the subject

Example 1

Given a triangle with sides 4ย cm4~cm, 3ย cm3~cm and 5ย cm5~cm. Calculate the perimeter.

Solution

We know that the perimeter of a triangle is the sum of its three sides, therefore,

P=4cmโก+3cmโก+5cmโก P=4\operatorname{cm}+3\operatorname{cm}+5\operatorname{cm}

Answer:

P=12cmโก P=12\operatorname{cm}


Example 2

Tell if it is possible to construct a triangle in which its sides measure 3ย cm 3~cm, 4ย cm 4~cm and 8ย cm 8~cm.

Solution

Recall that in order to construct a triangle, the sum of any two sides must be greater than the third side.

If we add the sides with measures 3ย cm 3~cm and 4ย cm 4~cm, we get as a result 7ย cm 7~cm, which is less than the third side.

Answer:

Therefore, it is not possible to construct a triangle with the given measures.


Do you know what the answer is?

Example 3

If an equilateral triangle has perimeter P=21cmโก P=21\operatorname{cm} . How long is each side?

Solution

Since the triangle is equilateral we know that its sides are equal, so we just divide the perimeter by three to get the measure of each side. lado.

P=3x P=3x

21cmโก=3x 21\operatorname{cm}=3x

x=21cmโก:3 x=21\operatorname{cm}:3

Answer:

x=7cmโก x=7\operatorname{cm}


Example 4

Tell if it is possible to construct a triangle in which its sides measure 5ย cm 5~cm, 7ย cm 7~cm and 10ย cm 10~cm.

Solution

We add the lengths of any two sides (edges) and compare with the length of the remaining side.

  • 5ย cm+7ย cm=12ย cm 5~cm + 7~cm= 12~cm which is greater than the remaining side that measures 10ย cm 10~cm
  • 7ย cm+10ย cm=17ย cm 7~cm + 10~cm = 17~cm The length of the remaining side, which is greater than the remaining side measuring 5ย cm 5~cm, is greater than the remaining side measuring 5ย cm 5~cm.
  • 10ย cm+5ย cm=15ย cm 10~cm + 5~cm = 15~cm , which is greater than the remaining side measuring 7ย cm 7~cm.

Answer:

So if it is possible to construct a triangle of measures 5ย cm 5~cm, 7ย cm 7~cm and 10ย cm 10~cm on each side.


Check your understanding

Questions on the subject

How many sides does a triangle have?

A triangle has three sides.


How many edges does a triangle have?

A triangle has three edges.


What are the edges of a triangle?

The edges of a triangle, commonly called the sides of a triangle, are the straight lines that bound the faces of the triangle.


What are the edges of a figure?

In a plane figure, the edges or sides are the line segments that join two vertices, and form the outline or perimeter of the figure.


Exercises on the sides or edges of a triangle

Exercise 1

Query

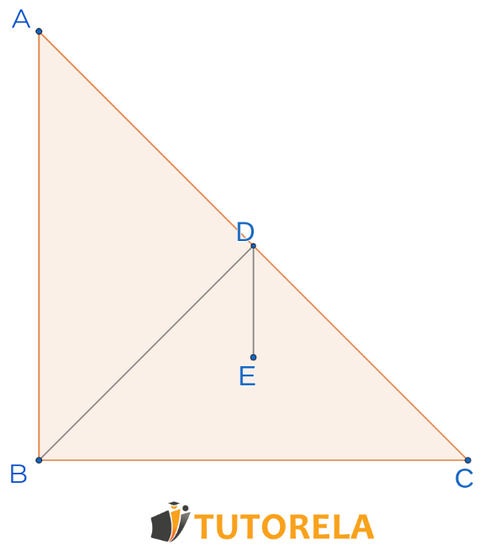

DE DE Does that side not exist as part of any of the triangles?

Consignment DE This side does not exist as part of any of the triangles.

Solution

A side in a triangle is a line that passes between one of the 3 points that are the angles of the triangle.

In this case the line DE DE does not pass between the extreme angles of any of the triangles but goes out through a point D D which is in fact an angle in a triangle โ–ณDBC \triangle DBC but DE DE ends at the point E E which is not an angle in any of the triangles in the figure.

Answer

True


Do you think you will be able to solve it?

Exercise 2

Question:

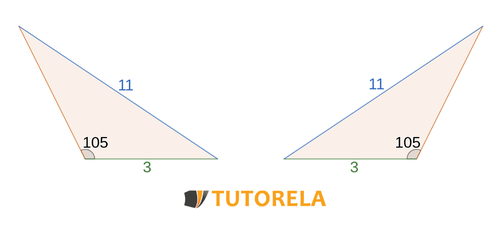

Exercise 2 Assignment - Triangles are superimposed on the drawing

Do the triangles in the drawing overlap?

Solution

We can observe that according to the theorem of superposition: side, side, angle.

We can observe that there are 2 sides equal in length and an angle equal in size.

Answer

Yes


Exercise 3

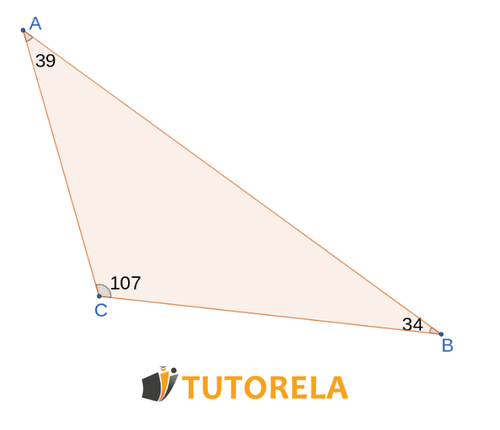

Exercise 3 - What kind of triangle is drawn here?

Question

What type of triangle is drawn here?

Solution

It can be seen that in this triangle each of its three angles is of different size so it can be said that it is a scalene triangle.

Answer

Scalene triangle


Test your knowledge

Exercise 4

Consigna

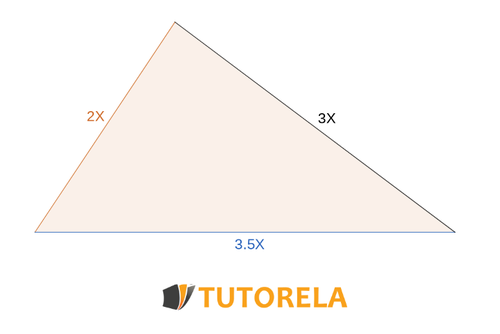

Given the following triangle:

Exercise 4 Task Given the following triangle

The perimeter of the triangle is 17 17

How much is X X ?

Solution

To solve the task we replace all the data we have in the equation to calculate the perimeter of the triangle:

2X+3X+3.5X=17 2X+3X+3.5X=17

Let's remember... The perimeter of the triangle is equal to the sum of its 3 sides.

If we calculate the equation we find that:

8.5X=17 8.5X=17

We divide the equation by 8.5 8.5 to find the value of. X X

8.5X8.5=X=178.5=2 \frac{8.5X}{8.5}=X=\frac{17}{8.5}=2

Answer

2 2


Exercise 5

Request

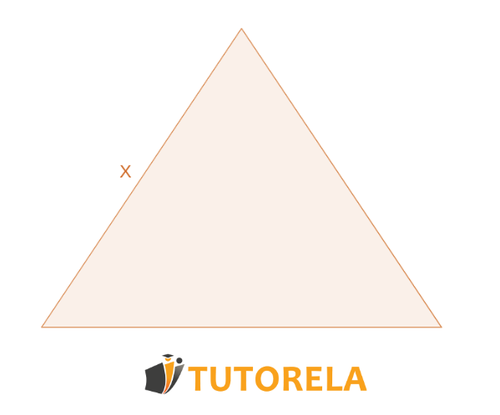

Given the equilateral triangle

Exercise 5 Assignment Given the equilateral triangle

The perimeter of the triangle is 33cmโก 33\operatorname{cm} , what is the value of X X ?

Solution

One of the characteristics of an equilateral triangle is obviously that each of its sides are equal, i.e. if one side is worth 11 11 all its sides will be equal to 11 11

Answer

11 11


Do you know what the answer is?

Examples with solutions for The sides or edges of a triangle

Exercise #1

Is the straight line in the figure the height of the triangle?

Video Solution

Step-by-Step Solution

To determine if the straight line is the height of the triangle, we'll analyze its role within the triangle:

  • Step 1: Observe the triangle and the given line. The triangle seems to be made of three sides and a vertical line within it.
  • Step 2: Recall that the height of a triangle, in geometry, is defined as a perpendicular dropped from a vertex to the opposite side.
  • Step 3: Examine the positioning of the line: The vertical line starts at one vertex of the triangle and intersects the base, appearing to be perpendicular.
  • Step 4: Verify perpendicularity: Given that the line is shown as a clear vertical (and a small perpendicular indicator suggests perpendicularity), we accept this line as the height.
  • Step 5: Conclude with verification that the line is effectively meeting the definition of height for the triangle in the diagram.

Therefore, the vertical line in the figure is indeed the height of the triangle.

Yes

Answer

Yes

Exercise #2

Is the straight line in the figure the height of the triangle?

Video Solution

Step-by-Step Solution

The triangle's altitude is a line drawn from a vertex perpendicular to the opposite side. The vertical line in the diagram extends from the triangle's top vertex straight down to its base. By definition of altitude, this line is the height if it forms a right angle with the base.

To solve this problem, we'll verify that the line in question satisfies the altitude condition:

  • Step 1: Identify the triangle's vertices and base. From the diagram, the base appears horizontal, and the vertex lies directly above it.
  • Step 2: Check the nature of the line. The line is vertical when the base is horizontal, indicating perpendicularity.
  • Conclusion: The vertical line forms right angles with the base, thus acting as the altitude or height.

Therefore, the straight line depicted is indeed the height of the triangle. The answer is Yes.

Answer

Yes

Exercise #3

Can a triangle have a right angle?

Video Solution

Step-by-Step Solution

To determine if a triangle can have a right angle, consider the following explanation:

  • Definition of a Right Angle: An angle is classified as a right angle if it measures exactly 90โˆ˜90^\circ.
  • Definition of a Right Triangle: A right triangle is a type of triangle that contains exactly one right angle.
  • According to the definition, a right triangle specifically includes a right angle. This is a well-established classification of triangles in geometry.

Thus, a triangle can indeed have a right angle and is referred to as a right triangle.

Therefore, the solution to the problem is Yes.

Answer

Yes

Exercise #4

Is the straight line in the figure the height of the triangle?

Video Solution

Step-by-Step Solution

In the given problem, we have a triangle depicted with a specific line drawn inside it. The question asks if this line represents the height of the triangle. To resolve this question, we need to discern whether the line is perpendicular to one of the sides of the triangle when extended, as only a line that is perpendicular from a vertex to its opposite side can be considered the height.

The line in question is shown intersecting one of the sides within the triangle but does not form a perpendicular angle with any side shown or the ground (as is required for it to be the height of the triangle). A proper height would typically intersect perpendicularly either at or along the extended line of the opposite side from a vertex.

Therefore, based on the visual clues provided and the typical geometric definition of a height (or altitude) in a triangle, this specific line does not fit the criteria for being a height.

Thus, we conclude that the line depicted is not the height of the triangle. The correct answer is No.

Answer

No

Exercise #5

Is the straight line in the figure the height of the triangle?

Video Solution

Step-by-Step Solution

To determine if the given line in the triangle is the height, we need to check if it satisfies the conditions of a triangle's altitude.

  • Step 1: Identify the base of the triangle. The problem suggests that the horizontal line, presumably at the bottom of the triangle, acts as the base.
  • Step 2: The altitude must be drawn from the vertex opposite to the base and be perpendicular to this base. Thus, the potential altitude would start at the apex of the triangle.
  • Step 3: The given figure features a straight line connecting two points on the interior of the triangle and is not perpendicular to the base.

Therefore, this line cannot be the height because it does not extend perpendicularly from the apex opposite the base to the base itself.

Thus, the correct answer is No.

Answer

No
